| 产品特性：加速度计 | 品牌：ST | 型号：AIS2DW12TR |
| 传感器类型：加速度计 | 传感轴：X,Y,Z | 加速度范围：±3.85/±7.7 g |
| 精度：0.06mg | 输出类型：模拟电压 | 系列：AIS |
| 电源电压：1.8V | 特性：低 g | 工作温度：125℃ |

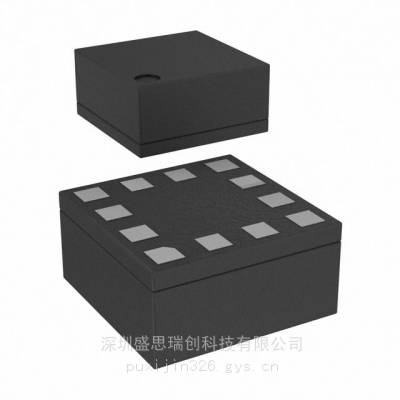

| 封装/外壳： LGA-14 | 安装类型：SMD | 最小包装数：3000 |
| 应用领域：安防设备 |
描述
The AIS2DW12 is an ultra-low-power three-axis linear accelerometer which leverages on the robust and mature manufacturing processes already used for the production of micromachined accelerometers and designed to address non-safety automotive applications.
The AIS2DW12 has four different ultra-low-power modes, two user-selectable full scales (±2g/±4g) and is capable of measuring accelerations with output data rates from 1.6 Hz to 100 Hz.
The AIS2DW12 has an integrated 32-level first-in, first-out (FIFO) buffer allowing the user to store data in order to limit intervention by the host processor.
The embedded self-test capability allows the user to check the functioning of the sensor in the final application.
The AIS2DW12 has a dedicated internal engine to process motion and acceleration detection including free-fall, motion and no-motion, wakeup, activity/inactivity and 6D/4D orientation.
The AIS2DW12 is available in a small thin plastic land grid array package (LGA) and it is guaranteed to operate over an extended temperature range from -40 °C to +85 °C.
所有功能
Single data conversion on demand
16-bit data output
Embedded temperature sensor
Self-test
32-level embedded FIFO
10000 g high shock survivability
ECOPACK, RoHS and “Green” compliant
AEC-Q100 qualified
Supply voltage, 1.62 V to 3.6 V
Independent IO supply and supply voltage compatible
Ultra-low-power mode consumption down to 380 nA @1.6 Hz
±2g/±4g dynamically selectable full scales
High-speed I?C/SPI digital output interface
2 independent programmable interrupts
MEMS加速度计嵌入了一些用于运动和加速度检测的实用功能，包括自由落体、唤醒、单次/两次轻击识别、活动/不活动检测以及6D/4D方向。
应用
智能手机、平板电脑和
电子阅读器
运动检测
智能节电
手势识别和游戏
显示方向
工业应用
振动监测和补偿
碰撞识别和记录
倾斜度/倾角测量
机器人
汽车应用
倾斜/方向检测
碰撞识别和记录
振动监测和补偿
加速度计产品类型
意法半导体的3轴MEMS加速度计包括通用传感器、应用的传感器，以及具有嵌入式机器学习内核的传感器。
面向汽车应用，意法半导体提供具有扩展温度范围且符合AEC-Q100标准的加速度计，例如AIS32x系列。
面向工业应用的器件包括IISxxx系列产品，这些产品已纳入意法半导体的长期供货计划。
通用传感器
应用的传感器
内嵌机器学习内核的传感器
了解加速度计产品组合
优势
节电功能，适合低功耗应用
OIS SPI AUX接口
机器学习内核
用于自定义手势识别的可编程有限状态机
计步器，步伐侦测和步数计算
低功耗模式、自动唤醒功能，以及FIFO缓冲
2x2x1-mm封装，可选用14或12引脚布局
